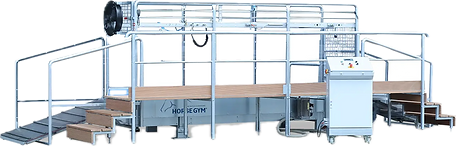

RACE LINE TREADMILLS
Race Line is designed for performance-oriented gallop training, allowing controlled high-speed movement while maintaining safety and joint protection. The system supports endurance development, muscle strengthening, and structured conditioning for sport horses.
With continuously adjustable speed and incline settings, trainers can create targeted training programs to prepare horses for competition or rehabilitation.
Horse Gym Treadmill Range
Race Comfort R1
Engineered for controlled gallop training and performance conditioning.
Race Speed R2
Designed for advanced gallop training and higher-speed conditioning.
Race High Speed R3
Engineered for maximum speed in professional racing environments.
Technology and Benefits
Dual Speed Control
Separate adjustment of walk/trot and trot/gallop speeds for smooth transitions.
Continuously Adjustable
Precise speed control allowing gradual acceleration for professional training.
Variable Incline
Incline up to 10% for targeted muscle building and conditioning.
Maximum Safety
Three-point safety system including light-barrier, shock sensor, and emergency stop.
Shatterproof Makrolon
Panels
Transparent side panels provide visibility, durability, and safe operation.
E-Drive Technology
Speed-regulated electric drive system designed for smooth and energy-efficient operation.
Digital Control Panel
Customisable training settings and clear operational control.
Automated Belt Lubrication
Integrated lubrication system that reduces maintenance and ensures consistence performance.
Joint-Friendly Surface
Special treadmill surface designed to support natural movement and reduce strain.
Technical Spefications
Specifications for the Horse Gym Race Line treadmill models
Race Comfort - R1
Length
7,100 mm
(including ramps)
Height
2,000 mm
Required Width Space
2,200 mm
Noise Level
≤ 60 dB
Required Installation Space
11,000 mm
Required Height
3,000 mm
Recommended Max Load
900 kg
Weight
2,400 kg
Width
1,680 mm
(including control unit)
Treadmill Width
800mm
Speed
0-45 km/h
Power Supply
11 kW / 380 V
Race Speed - R2
Length
7,100 mm
(including ramps)
Height
2,000 mm
Required Width Space
2,200 mm
Noise Level
≤ 60 dB
Required Installation Space
11,000 mm
Required Height
3,000 mm
Recommended Max Load
900 kg
Weight
2,400 kg
Width
1,950 mm
(including control unit)
Treadmill Width
800mm
Speed
0-50 km/h
Power Supply
11 kW / 380 V
Race High Speed - R3
Length
8,100 mm
(including ramps)
Height
3,400 mm
Required Width Space
2,500 mm
Noise Level
≤ 60 dB
Required Installation Space
12,000 mm
Required Height
3,600 mm
Recommended Max Load
900 kg
Weight
3,100 kg
Width
2,250 mm
(including control unit)
Treadmill Width
1,000mm
Speed
0-70 km/h
Power Supply
18.2 kW / 380 V
Optional Add-Ons
The following optional features allow the Race Line treadmill to be adapted to different training environments and facility requirements.
Safety Grid
Front and rear protection grids that provide additional safety for the horse during high-speed training.
Observation Stand
Raised platform allowing trainers and veterinarians to observe gait, posture, and movement during training sessions.
Safety Harness
Support harness system designed to provide additional stability and safety for the horse during intensive training.
Single or Dual Ventilator
Adjustable ventilation system providing controlled airflow to keep horses comfortable during training sessions.
Training Purpose
The Race Line treadmills are designed for high-performance gallop training and advanced conditioning of sport and racehorses. They allow controlled high-speed movement while maintaining safety and joint protection, making them ideal for developing endurance, power, and race readiness.
With precise speed control and adjustable incline, trainers can simulate real racing conditions, strengthen key muscle groups, and create structured training programs tailored to each horse's performance goals.
Applications
Race Conditioning
Prepare racehorses for competition by safely training at controlled gallop speeds.
Endurance Training
Improve cardiovascular fitness and stamina through structured high-speed conditioning sessions.
Muscle Development
Target key muscle groups through incline training and controlled speed progression.
Performance Monitoring
Observe gait, stride mechanics, and movement patterns during high-speed training.
Professional Training Facilities
Ideal for racing stables, professional training centres, veterinary clinics, and equestrian performance facilities.
